Anhua MA, Su PAN, and Weiwei ZHOU, “Service Migration Algorithm Based on Markov Decision Process with Multiple Service Types and Multiple System Factors,” Chinese Journal of Electronics, vol. 33, no. 6, pp. 1515–1525, 2024. DOI: 10.23919/cje.2022.00.128
Citation: Anhua MA, Su PAN, and Weiwei ZHOU, “Service Migration Algorithm Based on Markov Decision Process with Multiple Service Types and Multiple System Factors,” Chinese Journal of Electronics, vol. 33, no. 6, pp. 1515–1525, 2024. DOI: 10.23919/cje.2022.00.128

Service Migration Algorithm Based on Markov Decision Process with Multiple Service Types and Multiple System Factors

More Information
  • Author Bio:

    MA Anhua: Anhua MA was born in Jiangsu Province, China, in 1985. He is an Engineer and is currently a student at the College of Broadband Wireless Communication, Nanjing University of Posts and Telecommunications, Nanjing, China. His main research area is broadband wireless resource management. (Email: manshmily@qq.com)

    PAN Su: Su PAN was born in Jiangsu Province, China, in 1969. He is currently a Professor and serves as the Dean of the College of Internet of Things, Nanjing University of Posts and Telecommunications, Nanjing, China. His main research areas are broadband wireless resource allocation and mobile Internet technology. (Email: supan@njupt.edu.cn)

    ZHOU Weiwei: Weiwei ZHOU was born in Jiangsu Province, China, in 1992. She received her dual Ph.D. degree from Nanjing University of Posts and Telecommunications, Nanjing, China, and University of Technology Sydney, Sydney, Australia, in 2022. She is now working with the School of Computer Science and Technology at Nanjing Tech University in Nanjing, China. Her current interests include admission control and resource allocation in the wireless networks. (Email: zhouweiwei92@163.com)

  • Corresponding author:

    MA Anhua, Email: manshmily@qq.com

  • Received Date: May 12, 2022
  • Accepted Date: November 06, 2022
  • Available Online: March 19, 2024
  • Published Date: November 04, 2024
  • This paper proposes a Markov decision process based service migration algorithm to satisfy quality of service (QoS) requirements when the terminals leave the original server. Services were divided into real-time services and non-real-time services, each type of them has different requirements on transmission bandwidth and latency, which were considered in the revenue function. Different values were assigned to the weight coefficients of QoS parameters for different service types in the revenue and cost functions so as to distinguish the differences between the two service types. The overall revenue was used for migration decisions, rather than fixed threshold or instant revenue. The Markov decision process was used to maximize the overall revenue of the system. Simulation results show that the proposed algorithm obtained more revenue compared with the existing works.
  • The conventional centralized network architecture lacks flexibility for modern mobile applications. For example, a terminal has moved far away from the position where it initiates the service, if continuing to communicate with the original server will lead to high latency and causes waste of system resources in the core network. In order to solve this problem, 5G network uses software defined network (SDN) technology. SDN technology separates the software and hardware of network equipment, so that the functions of network equipment are no longer bound to specific hardware, which can meet the requirements of new advanced services more flexibly.

    Specifically, SDN adopts the network architecture that contains the application layer, control layer and forwarding layer. The application layer realizes various network functions such as making service migration decisions discussed in this paper, and it communicates with the control layer with the northbound interface. The control layer is responsible for generating routes and internal switching paths on demand, handling network status changes, and controlling the devices in forwarding layer through the southbound interface. The forwarding layer performs packet forwarding and other actions according to the instructions from the control layer. Based on this structure, the data centers and services are deployed in distribution. When the terminal’s position changes, the services can be migrated to the nearest server to improve service quality.

    Service migration can improve service experience of the users in terms of increasing the resource efficiency and reducing the latency, which is important in latency-sensitive scenario such as Internet of vehicles. There have been many studies on service migration, they mainly focus on the following aspects: 1) how to improve service quality [1]-[6], 2) how to reduce system resource consumption [7]-[10], and 3) both improving service quality and reducing system resource consumption [11]-[15].

    However, the existing studies have the following problems: 1) None of these studies considers multiple system factors and multiple service types. In a system, there are many factors affecting quality of service (QoS), such as latency, jitter and bandwidth, which need to be fully considered. And different service types have different requirements on QoS, this also needs to be considered. 2) Most of the above studies use fixed threshold or instant revenue at the decision moment for migration decisions, we defined and used overall revenue to make migration decisions, considering not only the instant revenue but also the sum of the revenues in the whole connection time of the services.

    Since only the current state and the related migration revenue are known at the current decision moment, the states and revenues in future are not known. To obtain the overall revenue, there must be a method to establish the relationship between the states at different decision moments, so that the future states and revenues can be predicted from the current state and revenue. Obviously, the current state is only related to the state of the last decision moment and the action performed, so it’s appropriate to use the Markov decision process to describe the relationship between the states at different decision moments during service migration process.

    Motivated by these two problems, this paper proposes a service type distinguished (STD) service migration decision scheme, which comprehensively considers multiple system factors and make migration decisions to maximize the overall revenue. We use the Markov decision process to predict the mean value of the sum of the revenues in the whole connection time of the services. Services were divided into two types according to their different requirements on QoS, one is real-time services that are sensitive to latency, and the other is non-real-time services that are not sensitive to latency. To distinguish the two types of services, we set different values for the weight coefficients of each QoS parameter in the revenue and cost functions. Therefore, real-time services always tend to be migrated to reduce latency, while non-real-time services tend not to be migrated to reduce migration overhead.

    The contributions of this paper are as follows:

    1) Propose a service migration decision scheme that considers multiple system factors and distinguishes different service types by assigning different values for the parameters of different services. In this way, more latency revenue can be obtained through frequent migrations for real-time services, and system overhead can be reduced for non-real-time services through less frequent migrations.

    2) The scheme makes migration decisions by maximizing the overall revenue, rather than according to instant revenue which is used in existing works.

    3) We proved that the Markov chain can be used for estimating the overall revenue and presented the corresponding iterative algorithm. We also gave out the analyses of convergence and complexity of the algorithm.

    The rest of this paper is structured as follows: Section II is the analysis of existing studies. Section III introduces the system model. Section IV is the simulation and discussion. And Section V is the summary and the future plan.

    There are many studies focusing on the service migration problem, and some studied the models and frameworks of service migration. The authors of [16] proposed a dynamic service migration mechanism based on edge cognitive computing (ECC), and studied how cognitive computing can be combined with edge computing to provide service migration. In [17], the authors proposed a general framework for optimizing edge service migration based on reinforcement learning, which could learn different service migration strategies according to different optimization goals.

    Some researchers focused on how to improve QoS through service migration. In [1], the authors studied around a specific service type of streaming media, focused on improving the cache hit rate of edge servers for low latency. The authors of [2] focused on the latency problem with the goal of minimizing the weighting and latency of all devices, proposed a scheme for computing resource evaluation, and used convex optimization theory for computing resource allocation. Based on the Internet of vehicles scenario, with latency and available bandwidth as the optimization goals, the authors of [3] focused on the routing transfer problem in the process of service migration. The authors of [4] researched on the latency in the service migration process, focused on reducing the interruption time of the service migration process using Docker, and proposed two migration solutions. In [5], the authors used the Markov decision process to train the migration model to improve service quality, but the model takes only one parameter of the distance between the user and the service location to define the state space. The authors of [6] used a reinforcement learning-based model to solve the service migration problem to reduce service discontinuity, but the training model is only for pre-set single user.

    There are also some researchers focused on how to reduce system overhead or reduce system energy consumption. The authors of [7] used the Lyapunov function to calculate the balance point of the system to make service migration without predicting user trajectories, and minimized system energy consumption on the premise of ensuring latency. The authors of [8] payed attention to the cost of service migration and divided users into high-mobility users and ordinary users, and the algorithm focuses on speeding up the recovery speed when services are blocked. In [9], the authors analyzed the vehicle edge network scenarios, and proposed an algorithm that integrates network performance, edge server processing capabilities and terminal movements to make migration decisions, which pays more attention to the server, but does not pay attention to the QoS. The authors of [10] proposed a brownout-based approximate Markov decision process approach to improve system performance and reduce energy consumption through deactivating non-mandatory components of applications.

    A few researchers combined the previous two studies, and focused not only on improving the service quality, but also on reducing the consumption of system resources. The authors of [11] focused on the cost and latency of service migration, and coordinated service migration by predicting vehicle movement routes. The authors of [12] proposed a migration algorithm that perceives the service quality of the existing handover procedure for the scenario of the Internet of Vehicles, and payed attention to the latency, reliability and service migration cost. In [13], the authors researched in the Internet of vehicles scenario, the model considers the speed of the vehicle. In [14], the authors also studied the Internet of vehicles scenario, focused on latency and service migration cost, and used Markov process for model optimization to minimize the total service delay and migration cost. The authors of [15] proposed a probabilistic service migration approach for delay-aware and mobility-aware mobile edge computing, which guarantees latency for terminals while reducing energy consumption in the cloud by optimizing service deployment.

    Some of the studies use fixed threshold to make migration decisions, some based on instant revenue, but none of them distinguishes the different requirements on QoS of different service types. The comparison of related work is as Table 1.

    Table  1.  Comparison of related work
    Scheme Research emphasis Scenario Decision method Algorithm complexity
    QoS Resource consumption Specific General Threshold Action revenue Low High
    [1]
    [2]
    [3]
    [4]
    [7]
    [8]
    [9]
    [10]
    [11]
    [12]
    [13]
    [14]
    [15]
    Ours
     | Show Table
    DownLoad: CSV

    In this section, we introduce the system model used in this paper, including the network architecture, terminal movement model, Markov state space, revenue function and service migration decision scheme.

    We consider a wireless cellular network, each cell corresponds to a service area with edge servers. As illustrated in Figure 1, when the terminal moves from service area 1 to service area 2, the system will gather information from the network and the terminal, and make migration decision based on the multiple system factors and QoS requirements. If the result is making migration, then the services will be migrated from the original server to the new server. Otherwise, the services will not be migrated.

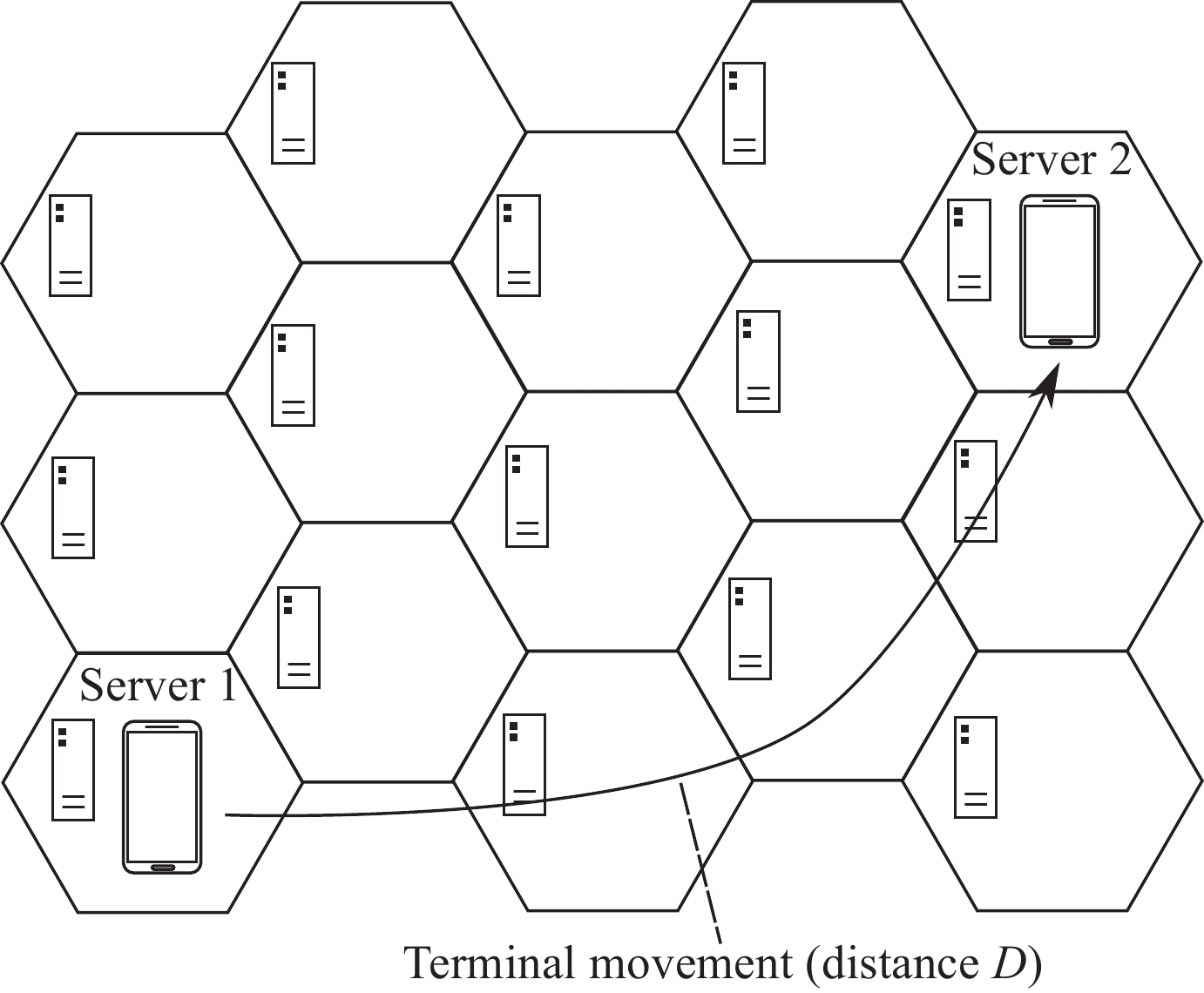

    Figure  1.  Heterogeneous service migration with multiple attributes.

    In the Markov model, the changes of different Markov states lead to different instant revenues, so the state is associated with the revenue, it should reflect instant information of the terminal. In the scenario considered in this paper, the terminal is moving continuously, the distance between the terminal’s current cell and the original cell is changing in real-time, and the services running on the terminal are also changing in real-time. So we take these two main factors as the state space of the decision model as follows:

    s={D,sr,sn}S

    where D{0,1,2,thr} represents the distance between the terminal’s current cell and the original cell in terms of circles, and thr represents the maximum circle distance allowed, when exceeding this distance, service migration will be performed by default. sr{0,1} represents real-time services that have high requirements on latency, such as video call or autopilot in the car, where 1 represents the terminal is running this type of services, and 0 represents the terminal is not running this type of services. sn\)\( represents non-real-time services such as file download or application upgrade, where 0 and 1 have the same meanings as those for real-time services.

    The action is the decision made according to the revenue function under the current condition, and the state transfers from s to s through action a.

    When action a is equal to a0, the services will not be migrated. When action a is equal to a1, the services will be migrated. In this paper, considering the complexity of technical implementation, we assume that when performing service migration, all services on the same terminal will be migrated together.

    In order to calculate the overall revenue by summing instant revenues of state space, we need to know the probability of each state. Since the next state is associated with the current one, if the current state is already known, then we can calculate the probability of next state through state space transition probability matrix. As described above, the state space is divided by the distance and service types running on the terminal.

    We evaluate the transition probabilities among the states of service types first. Divide according to whether there is such type of services running on the terminal, there are four states of service types, they are respectively {sr,sn}=[{0,0},{0,1},{1,0},{1,1}], with transform to the state transition process, the state transition diagram is shown in Figure 2.

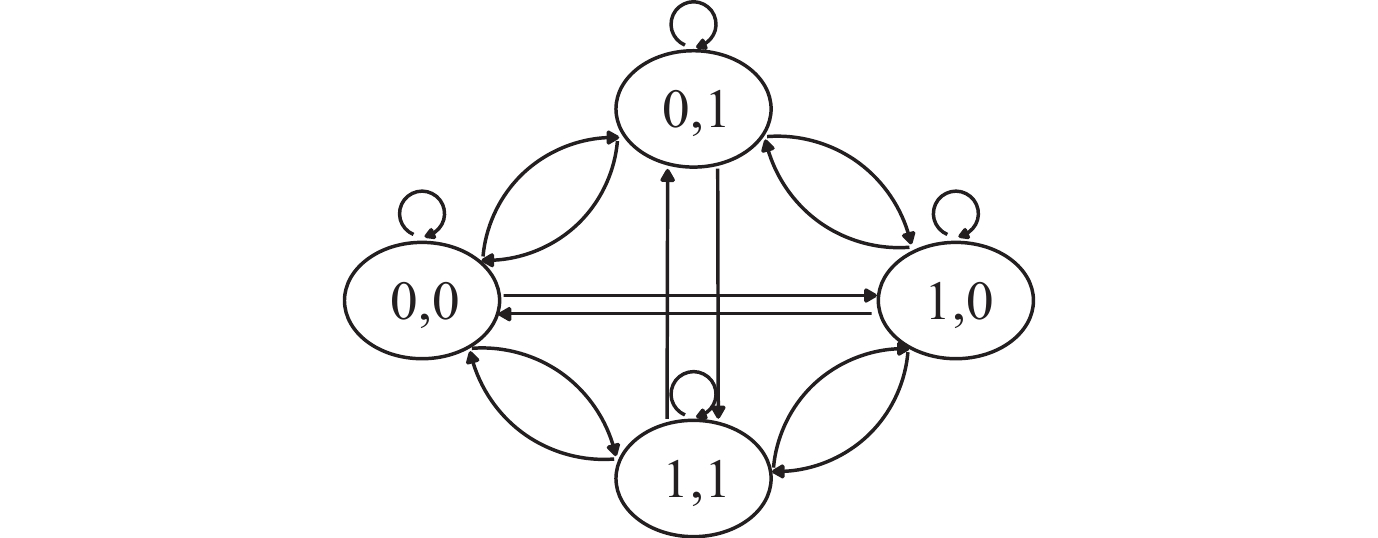

    Figure  2.  State transition diagram of service types.

    Assume that the arrival and departure of services follow the Poisson distribution. We use r+ to represent arrival of real-time services, use r to represent departure of real-time services, use r0 to represent unchanged to real-time services, and n+, n, and n0 to represent arrival, departure and unchanged of non-real-time services respectively, then the service state transition matrix is

    P1=[r0n0r0n+r+n0r+n+r0nr0n0r+nr+n0rn0rn+r0n0r0n+rnrn0r0nr0n0]

    In the state transition probability matrix P1, P1i,j represents the probability of transferring from state i to state j, where i,j=1,2,3,4 correspond to the four states of {0,0},{0,1},{1,0},{1,1} in {sr,sn}.

    Let the arrival and departure rates of real-time services are λ1eλ1 and μ1eμ1 respectively, the probability of keeping the same state is 1λ1eλ1μ1eμ1. Similarly, the arrival and departure rates of non-real-time services are λ2eλ2 and μ2eμ2 respectively, the probability of keeping the same state is 1λ2eλ2μ2eμ2. Then the transition probability matrix of real-time and non-real-time services of the terminal is as P1 below.

    From transition probability matrix P1 we can see that P11,1 represents the probability of the service state transfers from {0,0} to {0,0}, which is the probability that real-time and non-real-time service status remains the same with the probability of (1λ1eλ1μ1eμ1)×(1λ2eλ2μ2eμ2). Another example like P11,2 represents the probability of the service state transferring from {0,0} to {0,1}, which means the terminal starts a new non-real-time service while real-time service status remaining the same with the probability of (1λ1eλ1μ1eμ1)λ2eλ2.

    The above state transition probability only considers the state space of service types, the complete state space also includes the state of the distance between the terminal’s current cell and the original cell, we use D to represent the circle distance between the terminal’s current cell and the original cell where the server that the terminal is communicating with locates. Figure 3 shows the state transition diagram of circle distance D.

    Figure  3.  State transition diagram of circle distance.
    P1=[[(1λ1eλ1μ1eμ1)×(1λ2eλ2μ2eμ2)](1λ1eλ1μ1eμ1)λ2eλ2λ1eλ1(1λ2eλ2μ2eμ2)λ1eλ1λ2eλ2(1λ1eλ1μ1eμ1)μ2eμ2[(1λ1eλ1μ1eμ1)×(1λ2eλ2μ2eμ2)]λ1eλ1μ2eμ2λ1eλ1(1λ2eλ2μ2eμ2)μ1eμ1(1λ2eλ2μ2eμ2)μ1eμ1λ2eλ2[(1λ1eλ1μ1eμ1)×(1λ2eλ2μ2eμ2)](1λ1eλ1μ1eμ1)λ2eλ2μ1eμ1μ2eμ2μ1eμ1(1λ2eλ2μ2eμ2)(1λ1eλ1μ1eμ1)μ2eμ2[(1λ1eλ1μ1eμ1)×(1λ2eλ2μ2eμ2)]]

    In Figure 3, 0 represents the terminal is in the original cell, the terminal is communicating with the edge server in the cell, 1, 2 and other values represent the circle distances between the current cell and the original cell, thr is the maximum distance allowed, when exceeding this distance, service migration will be performed. When taking action a0, the services will not be migrated, and when taking action a1, the system will perform service migration. After service migration, the D in state space will return to 0.

    According to the network architecture in the scenario we considered and the moving model of the terminal in cellular network researched in [18], we can obtain the following terminal movement probabilities in the cellular network.

    p1=1pm,p2=pm,p3=1pm+26pm,p4=16pm,p5=36pm (1)

    where pm represents the probability of the terminal moving from the current cell to a neighboring cell.

    From the state transition diagram and (1), we can get the transition probability matrix P2 of the circle distance:

    P2=[P0,0P0,1P0,thrP1,0P1,1P1,thrPthr,0Pthr,1Pthr,thr]

    where P2i,j represents the probability of transferring from state i to state j, i and j represent the circle distance D. For example, P20,0 represents the probability of circle distance changing from 0 to 0, which is p1=1pm in the transition diagram. And the probabilities, such as P20,1, which have not been defined in the distance state transition diagram, will be set to 0 uniformly.

    Combining the state transition probability matrices P1 and P2, we can get the global state transition probability matrix P as

    P=[P1×P20,0P1×P20,1P1×P20,thrP1×P21,0P1×P21,1P1×P21,thrP1×P2thr,0P1×P2thr,1P1×P2thr,thr]

    The size of P is (4×(thr+1))×(4×(thr+1)), where 4×(thr+1) is the whole number of the state space, and the elements in the matrix are the probabilities that a terminal transfers from state s to state s through action a, which is P[s|s,a].

    The instant revenue function depends on the current state and the action taken, and a revenue function can be generated from a given state s. The instant revenue is the net revenue obtained from service quality of the migration decision after removing system overhead each time a terminal moves. The instant revenue function we defined includes the following parts.

    a) Revenue of latency and jitter

    Latency and jitter are two attributes that affect service experience. Through the researches on latency in [2], [15] and [19], we know that the latency of the terminal is related to the distance between the terminal and the server that provides services for it. And jitter is randomly caused by the network environment or the servers, the larger the distance is, the more network devices and servers a data link passes through, the larger the probability and the range of jitter. When performing service migration, the processing time is also counted.

    The total latency in the whole process includes the wireless part and the wired part. In the model studied in this paper, the wireless part is not related to the distance between the terminal and the server, and only the wired part is related to the distance. When the terminal is in the original cell, the distance D is 0, and the terminal has the minimum latency of t0. We set t0 as the base latency, which represents the latency when the terminal and the server are in the same cell.

    The jitter in the data link is a random value and increases roughly with the increase of distance, here we take the mean value of jitter and consider it linear with the change of distance. We use ρt0 to represent the jitter, ρ is the proportional coefficient of jitter and t0.

    We put the latency brought by service migration into consideration at the migration cost, and the revenue loss during migration process will also be considered in migration cost. We simplify the relationship between latency and distance to be linear here when designing the revenue function, and define the latency and jitter revenue function t(s,a) through comprehensive consideration of both real-time services and non-real-time services as

    t(s,a)=[sr,sn][α11t0+ktD+β11ρt0D,α21t0+ktD+β21ρt0D] (2)

    where α1 and α2 represent the influence coefficients of latency on real-time services and non-real-time services respectively. β1 and β2 represent the influence coefficients of jitter on real-time and non-real-time services respectively. For real-time services with high requirement on latency and sensitive to jitter, α1 and β1 have bigger values, and for non-real-time services with low requirement on latency and non-sensitive to jitter, α2 and β2 have smaller values on the contrary. The total latency is the sum of base latency t0 and additive latency ktD. Different migrations through different actions a lead to different D, hence the value of D is associated with the current state s and action a. kt represents the proportional coefficient of the latency varying with the distance, it’s a positive number. When the distance increases, the latency and jitter revenue decrease.

    b) Revenue of available bandwidth

    The available bandwidth is another attribute that influences the QoS, it also reflects the load condition of the system.

    According to the relevant model in [20], we define the available bandwidth revenue function b(s,a) as

    b(s,a)=[sr,sn][δ1exp[[min(0,xσ1)]22σ21],δ2exp[[min(0,xσ2)]22σ22]] (3)

    where δ1 and δ2 represent the influences of available bandwidth on real-time services and non-real-time services respectively, x represents the bandwidth provided by the system, σ1 and σ2 represent the bandwidths required by real-time services and non-real-time services respectively, different services have their separate requirements on transmission bandwidth. When the bandwidth provided by the system meets the requirements of services, the revenue is maximized, when the provided bandwidth is lower than requirements, the service experience is reduced. The function exp[[min(0,xσ1)]22σ21] is used to adjust the revenue according to above description.

    c) Migration cost of multiple system factors

    The migration cost consists of resource consumption during service migration in the core network and the corresponding service termination during this process. When performing service migration, the system needs to transfer the service data used by terminal from current server to another new one, and runs the corresponding programs on the new server to provide services for the terminal, this will consume system bandwidth and resource on servers. During this process, the service will also be suspended, which represents an increase in the latency of terminal. The bigger the user data, the more bandwidth and resource consumption in the network and servers, and the longer suspending time. As the suspending time is directly related to the data transmission and program processing in the system, here we do not deal with it individually.

    Due to the differences between the different service types, real-time services require small latency and jitter to improve service experience, while non-real-time services do not have this requirement. Therefore, when the position of the terminal changes, real-time services always tend to perform service migration to obtain smaller latency, but from the aspect of the system, frequent service migrations will consume too much system resource, thereby reducing the overall performance.

    As described above, the migration cost is associated with network bandwidth and server resource consumption and correspinding suspending time. The transmission bandwidth in core network is assumed to be sufficient here, and the cost function c(s,a) is defined as

    c(s,a)=[sr,sn]amm=[pCrb+qCrs,pCnb+qCns] (4)

    The cost function is the product of state vector [sr,sn] with action variable a and cost vector m. When no migration is performed, the action variable a is 0, and there is no migration cost, and the action variable a is 1 if migration is performed. The cost vector is m. Crb,Cnb and Crs,Cns are the bandwidth consumption and server resource consumption of real-time and non-real-time services respectively, the consumptions of real-time and non real-time services are different. p and q are the influence coefficients of network bandwidth and server resource consumption on the system during migration, the more powerful the performance of the server, the smaller the values of p and q, which means the influence of migration cost on the overall revenue is smaller. The bigger the migration cost, the greater the negative influence on the overall revenue of the whole system. k=p/q is the ratio between the network transmission capacity and the data processing capacity of the system, which reflects the capability characteristic of the system, such as transmission system or computing system.

    d) Revenue function of multiple system factors

    Different latency, jitter and available bandwidth have different affects on different service types, resulting in different revenues. We can adjust the influence of each QoS factor on revenue of different service types through the weight coefficients according to the requirements on service quality of the divided service types. According to (2), (3) and (4), we can obtain the following revenue function that combined latency and jitter and available bandwidth after removing the migration cost:

    r(s,a)=t(s,a)+b(s,a)c(s,a)=[sr,sn][α11t0+ktD+β11ρt0D,α21t0+ktD+β21ρt0D]+[sr,sn][δ1exp[[min(0,xσ1)]22σ21],δ2exp[[min(0,xσ2)]22σ22]][sr,sn]a[pCrb+qCrs,pCnb+qCns] (5)

    The goal of the model is to maximize the overall revenue, that is to maximize the sum of instant revenues of all actions. The overall revenue here refers to the total net revenues from all migration decisions in the whole connection time of all services on all terminals.

    The overall revenue function is

    vπ(s0)=Eπ{t=0γtr(st,at)} (6)

    where π is a service migration decision strategy consists of a set of actions performed at each specific state, the initial state is s0, γ[0,1] represents the reduction factor which means the importance of long-term revenues relative to instant revenues. Specially, γ=0 represents we only consider instant revenues without considering long-term revenues, while γ=1 represents we consider long-term revenues as important as instant revenues. Eπ{t=0γtr(st,at)} represents the overall revenue function through calculating the expectation of the sum of instant revenues.

    Our goal is to find out a maximum overall revenue function vπ(s0) as follows:

    vπ(s0)=maxa0AEπ{t=0γtr(st,at)} (7)

    Theorem 1 The over all revenue function vπ(s0) can be expressed as

    vπ(s0)=sSP[s|s0,a0]r(s0,a0)+sSγP[s|s0,a0]vπ(s)

    Proof For each state is associated with the previous one, so the overall revenue is related with the initial state and the actions taken at each state. We extract the first term from the expectation of (6), and obtain (8) as follows:

    vπ(s0)=Eπ{r(s0,a0)+γt=0γtr(st+1,at+1)} (8)

    then we expand the first half of (8), it follows:

    Eπ{r(s0,a0)}=sSP[s|s0,a0]r(s0,a0) (9)

    and then transform the last half of (8) into (10):

    Eπ{γt=0γtr(st+1,at+1)}=sSP[s|s0,a0]γEπ{t=0γtr(st+1,at+1)} (10)

    Replace Eπ{t=0γtr(st+1,at+1)} in (10) with vπ(s), and add (9) and (10), it follows:

    vπ(s0)=sSP[s|s0,a0]r(s0,a0)+sSγP[s|s0,a0]vπ(s)

    With Theorem 1, (7) can be expressed as

    vπ(s0)=maxa0A{sSP[s|s0,a0]r(s0,a0)+sSγP[s|s0,a0]vπ(s)}

    Different π leads to different values of overall revenue function by adopting different strategies. Our goal is to find out a strategy π to maximize the sum of all revenues at all states, and that is the migration scheme we get last to make the service experience and system overhead optimized.

    According to the expression above, the optimization algorithm of the model is as Algorithm 1.

    Algorithm 1 Numerical iterative algorithm
    1: Initialize v0(s)=0,ε>0,k=0.
    2: repeat
    3:  update vk+1(s)=maxaA{sSP[s|s0,a0]r(s,a)              +sSγP[s|s,a]vk(s)};
    4:  update k=k+1;
    5: until vk+1vkvk<ε
    6: return δ(s)=argmaxaA{sSP[s|s0,a0]r(s,a)              +sSγP[s|s,a]vk(s)}.

    The iterative method is used to optimize the model, first, the overall revenue is set to 0, then calculate the revenue of each state step by step according to (5), and calculate the overall revenue until the stopping condition we set is met. Then repeat the steps with other strategies, finally the set π of actions corresponding to the maximum value is the optimal migration strategy π that we want to find. The parameter ε is used to adjust the number of iterations, a smaller ε can improve the accuracy of the algorithm, and a larger ε can reduce the amount of computation.

    In this paper, the incremental gain ratio is used to control the iterative process of the algorithm. At each time a migration decision is made, different revenues can be obtained according to different actions, the revenues vary randomly within a certain range. To simplify the analysis, it is assumed that the revenues of each migration decision are the same, which is r0, then the overall revenue after 1ε+1 times of iterations is r0(1ε+1), and it is r0(1ε+2) after 1ε+2 times of iterations.

    And now

    r0×(1ε+2)r0×(1ε+1)r0×(1ε+1)=εε+1<ε

    which meets the stopping condition we set, then the calculation will stop after 1ε+2 times of iterations. In actual, since the revenue of each migration decision is different, the number of iterations will increase or decrease, but their statistical average tends to be 1ε+2. Therefore, the proposed algorithm is convergent.

    There are two service types and four combinations of service types defined in this paper, and there are a total of thr+1 kinds of distance in the proposed algorithm. The size of the state space is 4×(thr+1), that is, there are a total of 4×(thr+1) states that the Markov decision process may experience. Two actions can be taken at each state: migrate or not. Then the number of actions may be experienced in one iteration is O(24×(thr+1)), together with the iterative times analyzed above, the total complexity of the algorithm is O(24×(thr+1)×(1ε+2)), thr and ε are fixed parameters, they are limited numbers, compared with [15], the complexity of the proposed algorithm is in the same order of magnitude.

    Based on the network model proposed in Section III, we used a set of synthetic parameters to perform the simulation.

    Assume that the real-time services and non-real-time services are running on the terminal at the same time, we took video call as the reference for real-time services, the requirement on transmission bandwidth σ1 is 5 Mbps, and the declared requirement on latency is not exceeding 100 ms, the arrival rate and departure rate of it are 0.1 and 0.05 respectively. For non-real-time services, the HD video streaming media caching was used as the reference, the requirement on transmission bandwidth σ2 is 10 Mbps, with no requirement on latency, the arrival rate and departure rate of it are 0.15 and 0.1 respectively.

    The available bandwidth x provided by the server was changing randomly between 3 Mbps and 20 Mbps. The base latency t0 was set to 30 ms. The proportional coefficient kt\)\( was set to 0.02+random(0.01,0.01), which indicates that every time the distance increases by 1, the latency increases by 20 ms and changes randomly within 10 ms. The weight coefficients of cost consumption p and q were both set to 0.5.

    Due to the latency and jitter have more influence on experience of real-time services and less influence on non-real-time services, α1 and β1 were set to 0.04 and 0.02 respectively, and α2 and β2 were both set to 0.01. While available bandwidth has more influence on experience of non-real-time services than that of real-time services, δ1 was set to 0.2 and δ2 was set to 0.4. Real-time services are often computing services, only the service data of the user needs to be transferred to the new server while performing service migration. Non-real-time services are often resource-based services, and a large number of files need to be transferred during migration. Therefore, the migration costs Crb,Cnb and Crs,Cns in this paper were set to 0.2, 0.7 and 0.3, 0.5 respectively.

    The probability that the terminal moves from the current cell to a neighboring one was set to 0.75. The maximum circle distance thr was set to 5. The reduction factor γ that adjusts the importance of long-term revenues relative to instant revenues varied between 0 and 1, when not specified, the value was 1 by default. The iteration control parameter ε was set to 0.001.

    The following algorithms were selected as comparison:

    1) Never migrate (NM): The service is always provided by the initial server, and there is no migration cost in the network.

    2) QoS first (QF): The service will always be migrated as the terminal moves to ensure the best service quality.

    3) Considering both QoS and cost (PDMA proposed in [15]), the algorithm minimizes migration cost while ensuring service quality.

    Figures 46 are the simulation results of the scenario where both real-time services and non-real-time services exist.

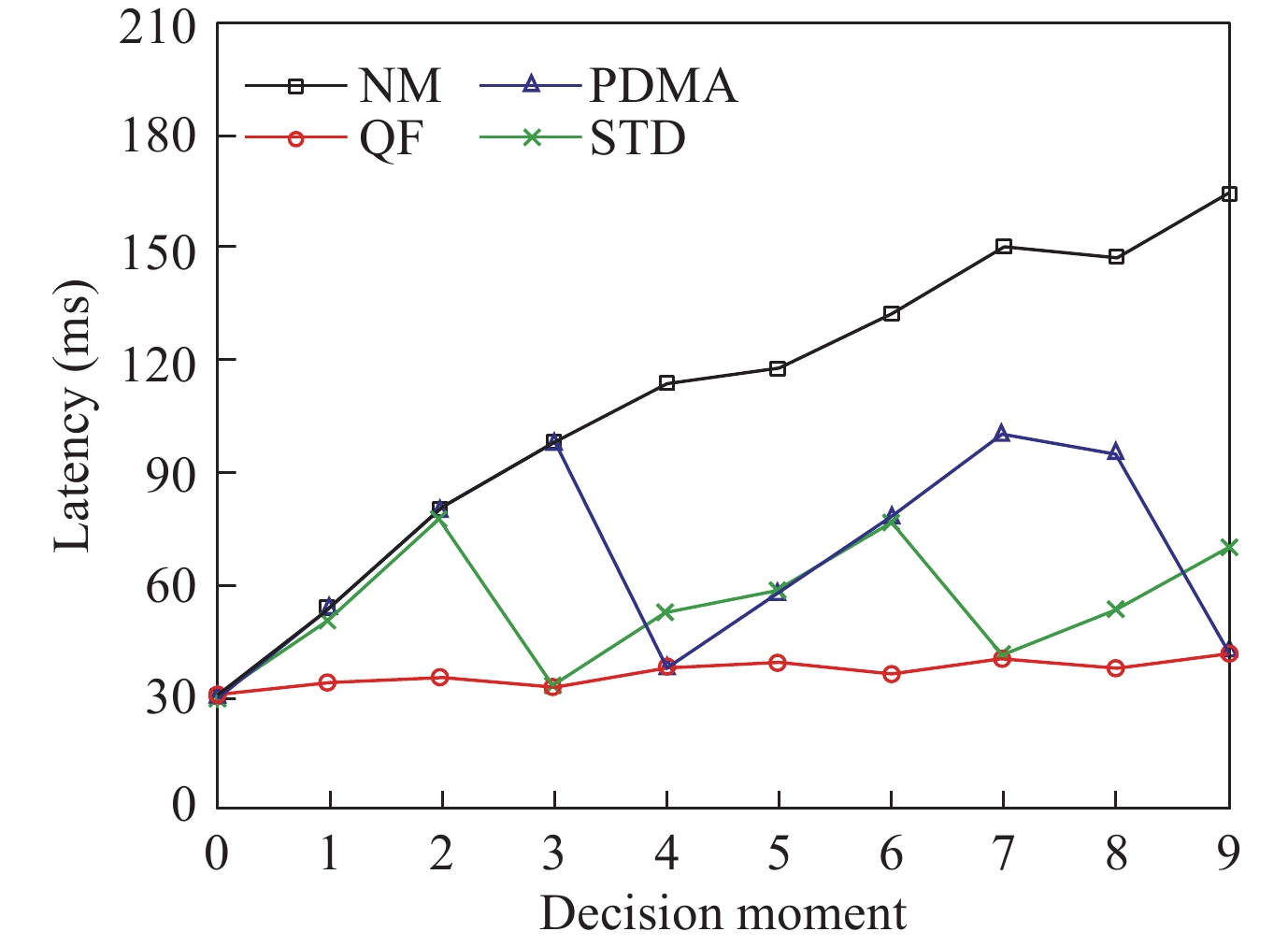

    Figure  4.  Changes of latency at different decision moments.

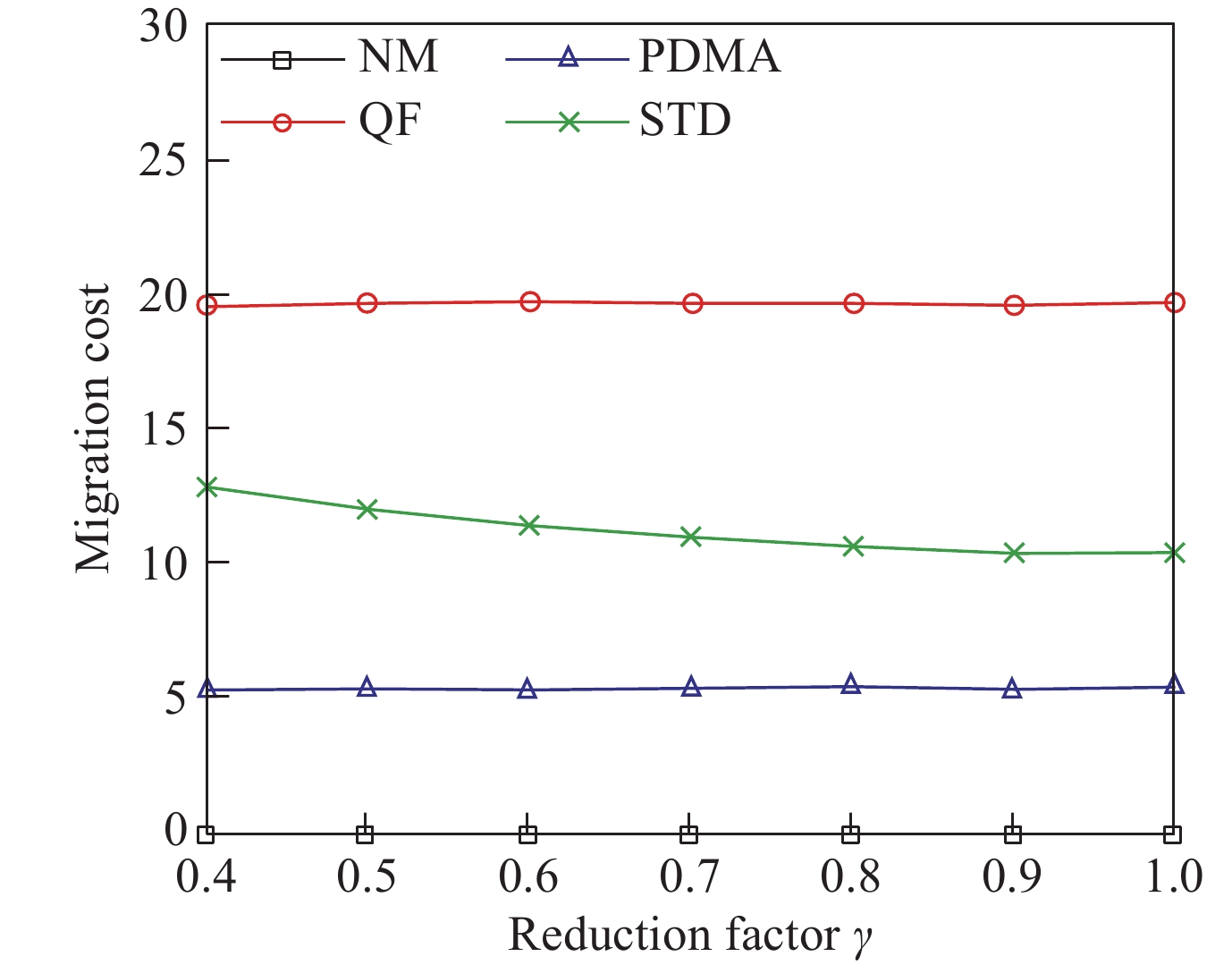

    Figure  5.  Changes of migration cost with different reduction factors.

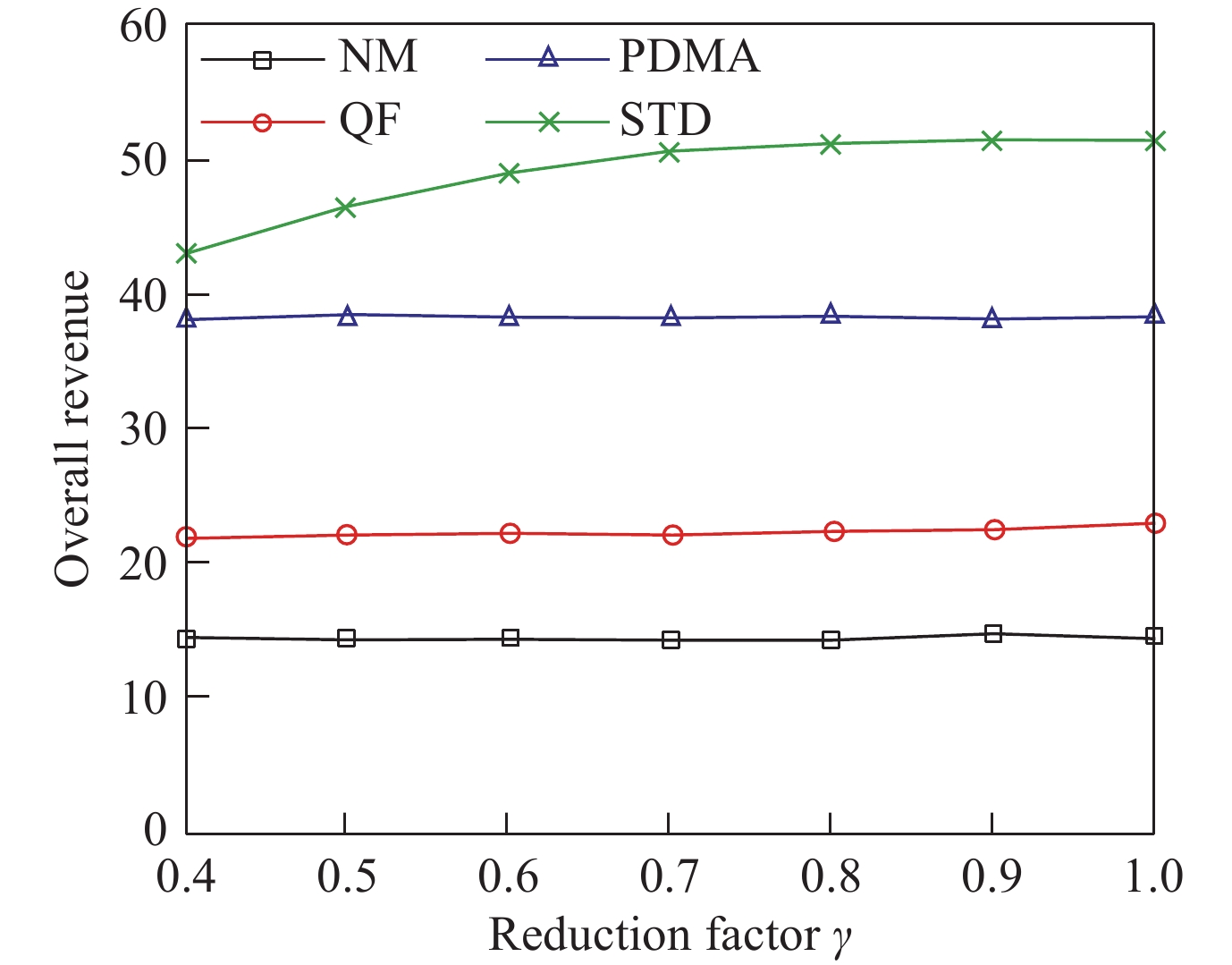

    Figure  6.  Changes of overall revenue with different reduction factors.

    It can be seen from Figure 4 that every time the latency falls from the peak to about 30 ms means that a service migration is performed. Compared with PDMA, more frequent migration operations are performed, and the latency is controlled to meet that required by service declaration. Accordingly, the migration cost of proposed scheme is also larger than PDMA in Figure 5. However, as can be seen from Figure 6 that the proposed algorithm has the best overall revenue, this is because the proposed algorithm does not make migrations rely on a fixed threshold, but maximizes the overall revenue. At each decision moment, it calculates the instant revenue of migrating or not in the current state, and calculates the long-term revenue that could be obtained corresponding to different actions according to the state transition probability matrix, and takes the action corresponding to the maximum total revenue as the decision. It can also be seen that the overall revenue increases as the reduction factor gets larger and reaches maximum when the reduction factor is 0.9.

    Next are the simulation results for two special cases with only real-time services or only non-real-time services exist.

    From Figures 7 and 8, it can be seen that the proposed algorithm exhibits different decision-making behaviors in the two cases. When there are only real-time services, the algorithm performs frequent migration operations, which is close to the QF algorithm. When there are only non-real-time services, the migration frequency is very low, which is close to the NM algorithm. From Figure 7, it can be seen that the latency guarantee rate of real-time services is 100% by frequent migrations. Because we distinguish the different requirements of the two types of services, the high migration costs caused by real-time services can be balanced by non-real-time services which seldom migrate, which ensures the latency requirements of real-time services while keeping migration cost acceptable. The migration costs in Figures 9 and 10 also show the different behaviors of the proposed algorithm. This reflects that the proposed scheme can adapt to the latency requirements of different services, and also considers reducing the migration cost. It’s because that the proposed algorithm assigns different weights to the migration revenues and costs of the two types of services, when there is only one type of services exists, the algorithm will calculate the revenue according to the parameters set for this type of services. Comparing with algorithms that do not distinguish service types, it can reflect the differences in requirements on QoS of different services more accurately, so as to make migration decisions more suitable for the differentiated requirements. The overall revenues obtained by the proposed algorithm in Figures 11 and 12 are the largest compared to others, the reason is the same as that in Figure 6. The QF and NM algorithms achieved opposite overall revenue in these two cases. When there are only real-time services, compared with the NM algorithm, the QF algorithm is closer to meet the requirements of the services, and the NM algorithm has the largest difference from the requirements. Therefore, the QF algorithm obtained larger revenue, and the NM algorithm obtained the smallest revenue. When there are only non-real-time services, the NM algorithm is closer to meet the requirements of the services, while the QF algorithm is the most different from the requirements, so the performances of the two are opposite to that when there are only real-time services.

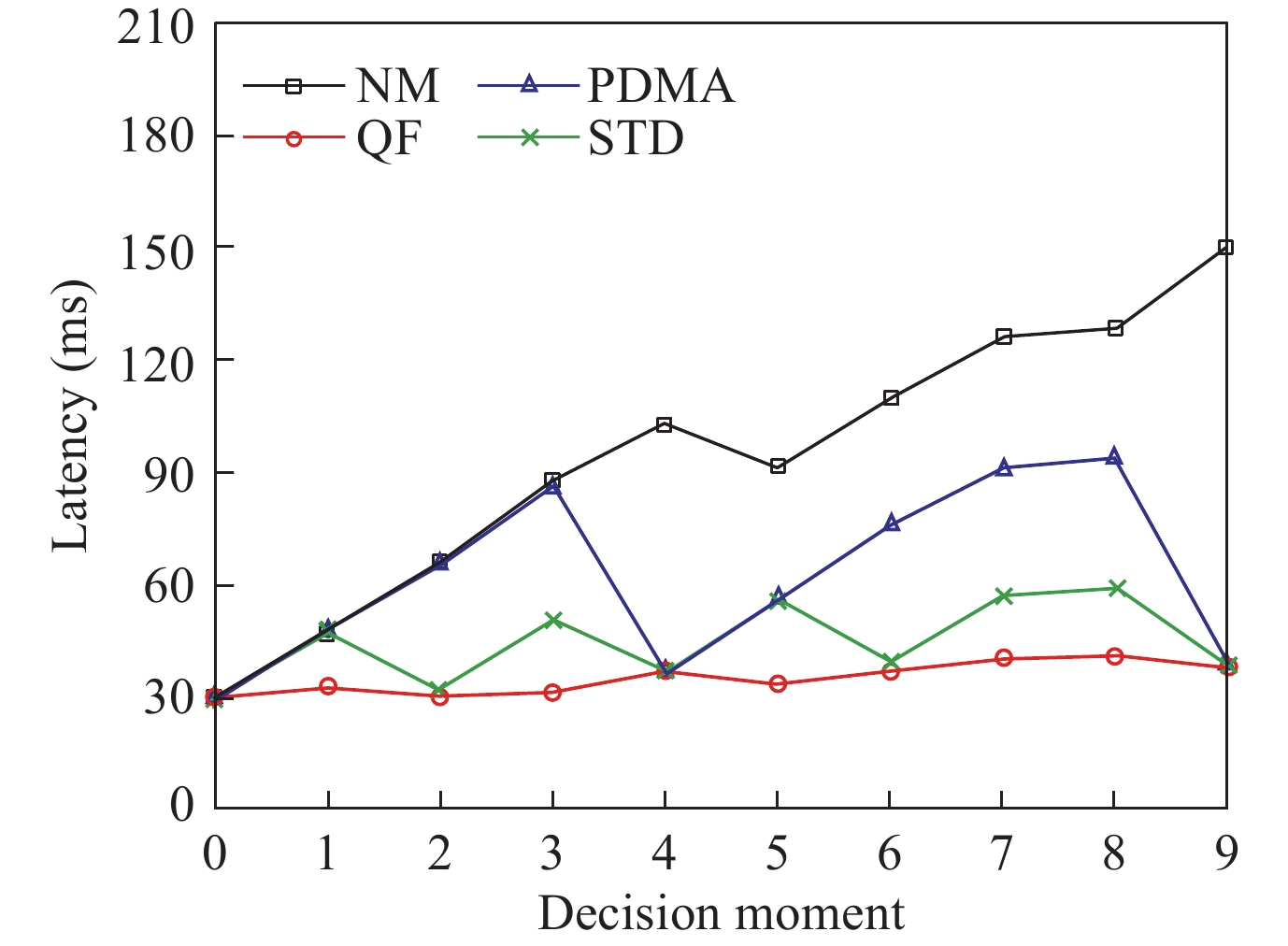

    Figure  7.  Changes of latency with only real-time services.
    Figure  8.  Changes of migration cost with only real-time services.

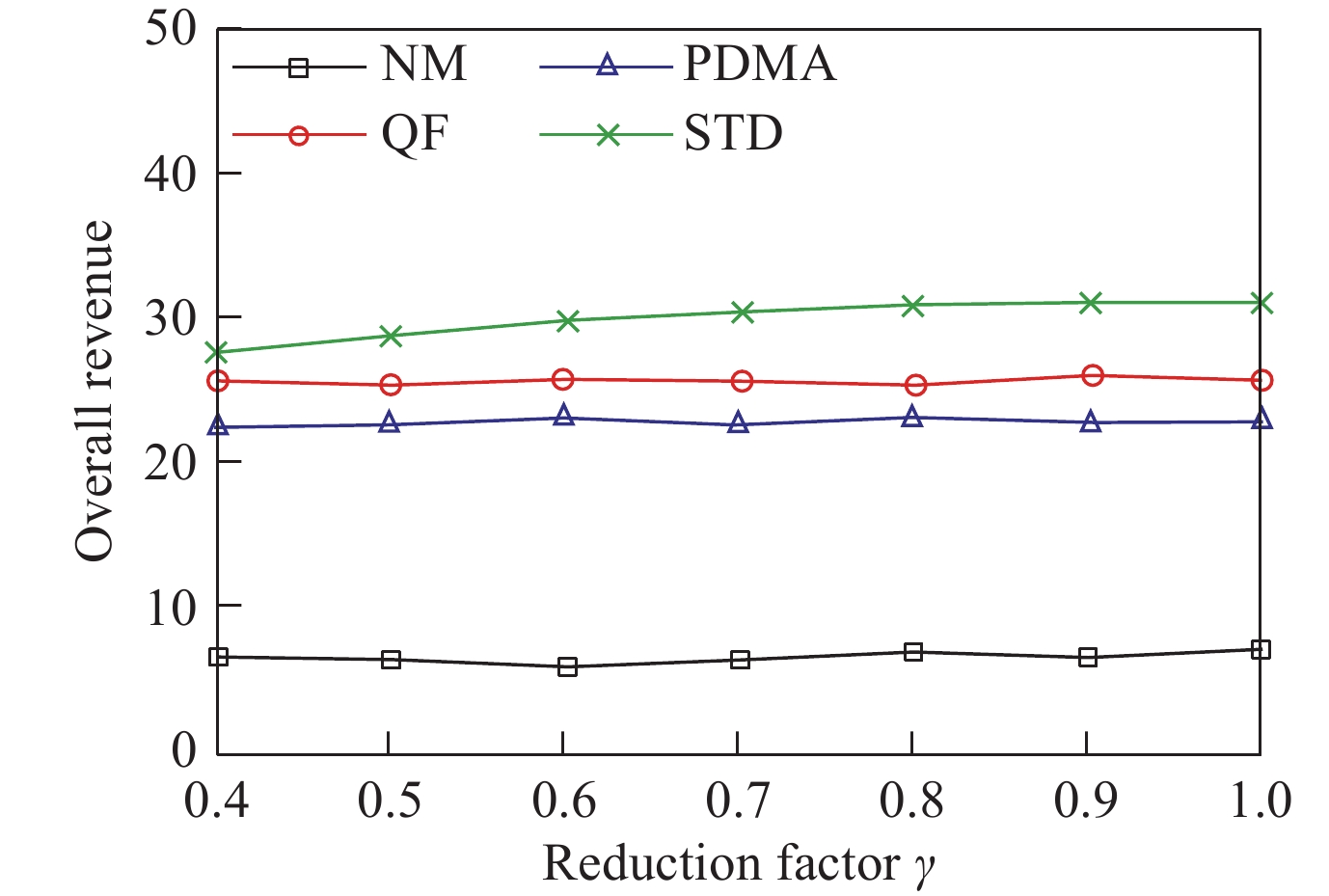

    Figure  9.  Changes of overall revenue with only real-time services.
    Figure  10.  Changes of latency with only non-real-time services.

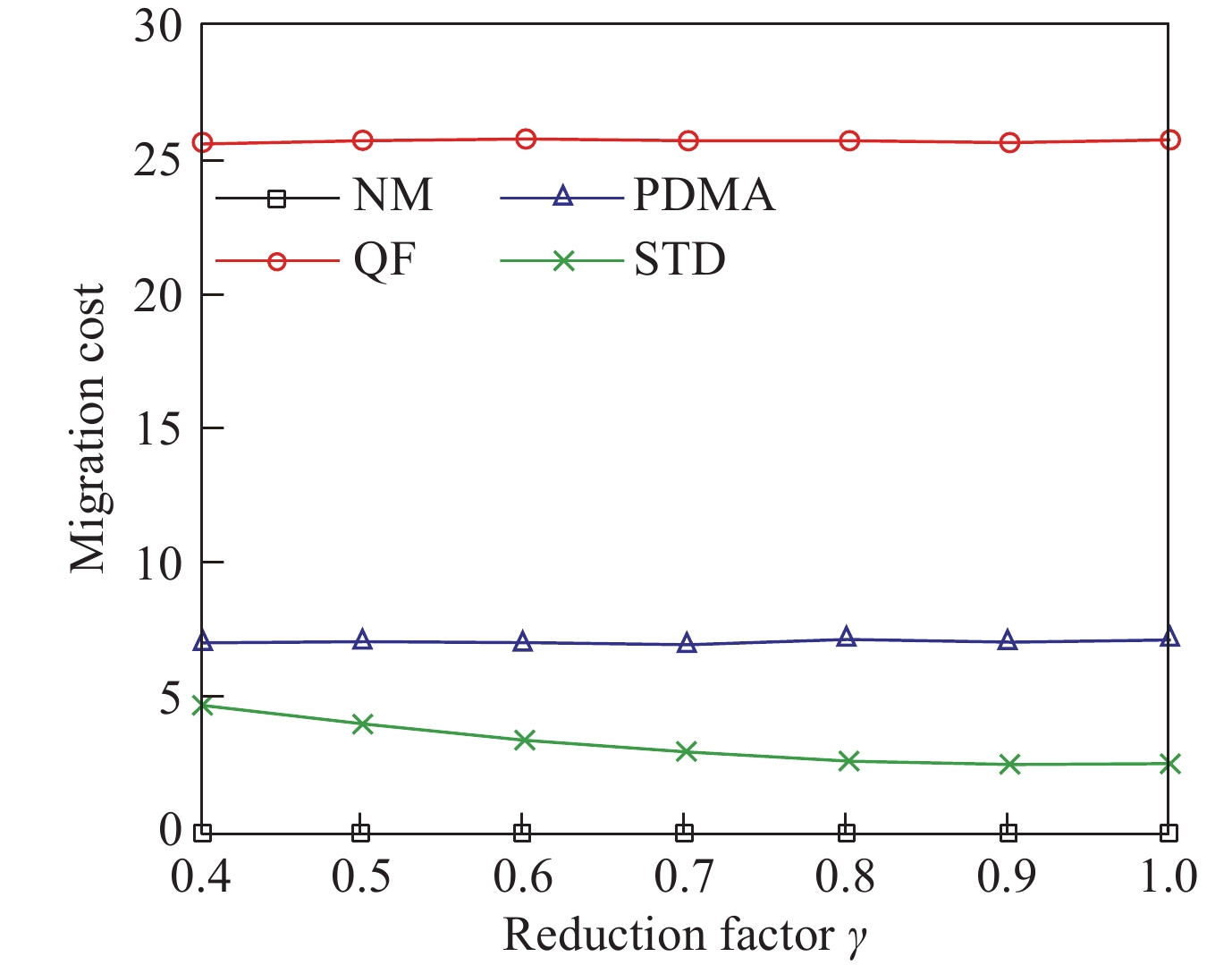

    Figure  11.  Changes of migration cost with only non-real-time services.

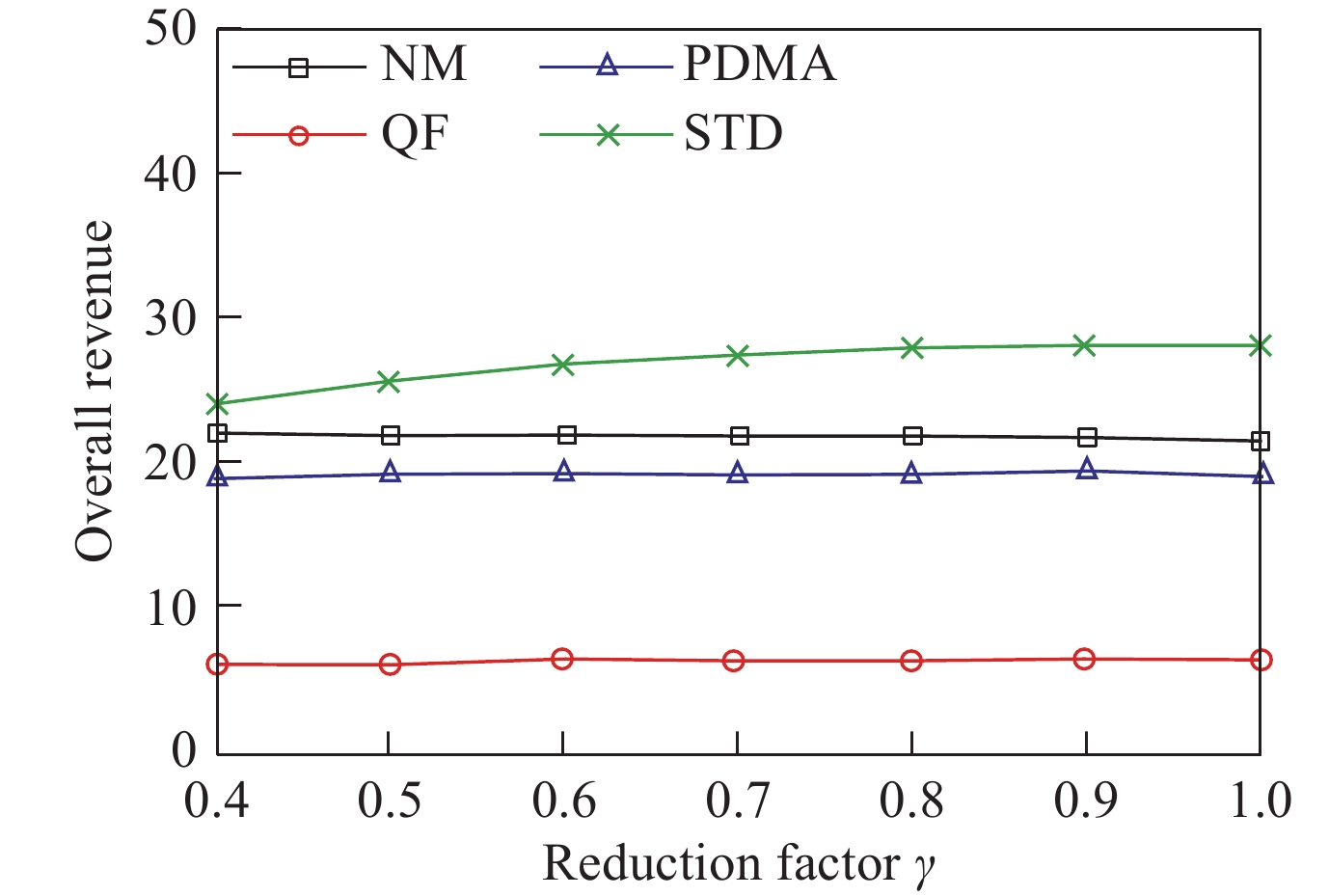

    Figure  12.  Changes of overall revenue with non-real-time services.

    This paper proposes a service migration algorithm to satisfy QoS requirements when the terminal moves. The algorithm distinguishes the different requirements on service quality such that the revenue and cost can be balanced. The proposed algorithm makes migration decisions based on overall revenue rather than fixed threshold or instant revenue, and Markov decision process was used to maximize the overall revenue of the system. Simulation results show that the largest revenue in whole process of service connection was obtained by the proposed algorithm.

    In the next step, we will increase the analysis of energy consumption of servers, and research how to reduce energy consumption of the system while guaranteeing service quality to cope with the trend of increasingly energy efficiency.

    This work was supported by the National Natural Science Foundation of China (Grant No. 61271235).

  • [1]
    C. L. Li, L. Zhu, W. G. Li, et al., “Joint edge caching and dynamic service migration in SDN based mobile edge computing,” Journal of Network and Computer Applications, vol. 177, article no. 102966, 2021. DOI: 10.1016/j.jnca.2020.102966
    [2]
    J. K. Ren, G. D. Yu, Y. H. He, et al., “Collaborative cloud and edge computing for latency minimization,” IEEE Transactions on Vehicular Technology, vol. 68, no. 5, pp. 5031–5044, 2019. DOI: 10.1109/TVT.2019.2904244
    [3]
    M. R. Anwar, S. G. Wang, M. F. Akram, et al., “5G-enabled MEC: A distributed traffic steering for seamless service migration of Internet of Vehicles,” IEEE Internet of Things Journal, vol. 9, no. 1, pp. 648–661, 2022. DOI: 10.1109/JIOT.2021.3084912
    [4]
    R. A. Addad, D. L. C. Dutra, M. Bagaa, et al., “Fast service migration in 5G trends and scenarios,” IEEE Network, vol. 34, no. 2, pp. 92–98, 2020. DOI: 10.1109/MNET.001.1800289
    [5]
    S. Q. Wang, R. Urgaonkar, M. Zafer, et al., “Dynamic service migration in mobile edge computing based on Markov decision process,” IEEE/ACM Transactions on Networking, vol. 27, no. 3, pp. 1272–1288, 2019. DOI: 10.1109/TNET.2019.2916577
    [6]
    Z. P. Gao, Q. D. Jiao, K. L. Xiao, et al., “Deep reinforcement learning based service migration strategy for edge computing,” in Proceedings of the 2019 IEEE International Conference on Service-Oriented System Engineering (SOSE), San Francisco, CA, USA, pp. 116–1165, 2019.
    [7]
    X. B. Zhou, S. X. Ge, T. Qiu, et al., “Energy-efficient service migration for multi-user heterogeneous dense cellular networks,” IEEE Transactions on Mobile Computing, vol. 22, no. 2, pp. 890–905, 2023. DOI: 10.1109/TMC.2021.3087198
    [8]
    H. W. Lin, X. L. Xu, J. Zhao, et al., “Dynamic service migration in ultra-dense multi-access edge computing network for high-mobility scenarios,” EURASIP Journal on Wireless Communications and Networking, vol. 2020, no. 1, article no. 191, 2020. DOI: 10.1186/s13638-020-01805-2
    [9]
    H. Guo, L. L. Rui, and Z. P. Gao, “Dynamic service migration strategy based on MDP model with multiple parameter in vehicular edge network,” Journal on Communications, vol. 41, no. 1, pp. 1–14, 2020. DOI: 10.11959/j.issn.1000-436x.2020012
    [10]
    M. X. Xu and R. Buyya, “Energy efficient scheduling of application components via brownout and approximate Markov decision process,” in Proceedings of the 15th International Conference on Service-Oriented Computing, Malaga, Spain, pp. 206–220, 2017.
    [11]
    Q. Yuan, J. L. Li, H. B. Zhou, et al., “A joint service migration and mobility optimization approach for vehicular edge computing,” IEEE Transactions on Vehicular Technology, vol. 69, no. 8, pp. 9041–9052, 2020. DOI: 10.1109/TVT.2020.2999617
    [12]
    J. Li, X. M. Shen, L. Chen, et al., “Service migration in fog computing enabled cellular networks to support real-time vehicular communications,” IEEE Access, vol. 7, pp. 13704–13714, 2019. DOI: 10.1109/ACCESS.2019.2893571
    [13]
    Y. Peng, L. Liu, Y. Q. Zhou, et al., “Deep reinforcement learning-based dynamic service migration in vehicular networks,” in Proceedings of the 2019 IEEE Global Communications Conference (GLOBECOM), Waikoloa, HI, USA, pp. 1–6, 2019.
    [14]
    A. Abouaomar, Z. Mlika, A. Filali, et al., “A deep reinforcement learning approach for service migration in MEC-enabled vehicular networks,” in Proceedings of the 2021 IEEE 46th Conference on Local Computer Networks (LCN), Edmonton, Canada, pp. 273–280, 2021.
    [15]
    M. X. Xu, Q. H. Zhou, H. M. Wu, et al., “PDMA: Probabilistic service migration approach for delay-aware and mobility-aware mobile edge computing,” Software: Practice and Experience, vol. 52, no. 2, pp. 394–414, 2022. DOI: 10.1002/spe.3014
    [16]
    M. Chen, W. Li, G. Fortino, et al., “A dynamic service migration mechanism in edge cognitive computing,” ACM Transactions on Internet Technology, vol. 19, no. 2, article no. 30, 2019. DOI: 10.1145/3239565
    [17]
    F. Brandherm, L. Wang, and M. Mühlhäuser, “A learning-based framework for optimizing service migration in mobile edge clouds,” in Proceedings of the 2nd International Workshop on Edge Systems, Analytics and Networking, Dresden, Germany, pp. 12–17, 2019.
    [18]
    K. H. Chiang and N. Shenoy, “A 2-D random-walk mobility model for location-management studies in wireless networks,” IEEE Transactions on Vehicular Technology, vol. 53, no. 2, pp. 413–424, 2004. DOI: 10.1109/TVT.2004.823544
    [19]
    X. L. Jiang, H. Shokri-Ghadikolaei, G. Fodor, et al., “Low-latency networking: Where latency lurks and how to tame it,” Proceedings of the IEEE, vol. 107, no. 2, pp. 280–306, 2019. DOI: 10.1109/JPROC.2018.2863960
    [20]
    S. Pan, W. W. Zhou, Q. Q. Gu, et al., “Network selection algorithm based on spectral bandwidth mapping and an economic model in WLAN & LTE heterogeneous networks,” KSII Transactions on Internet and Information Systems, vol. 9, no. 1, pp. 68–86, 2015. DOI: 10.3837/tiis.2015.01.005
